01 / BASALT REINFORCEMENTRoads & layerworks

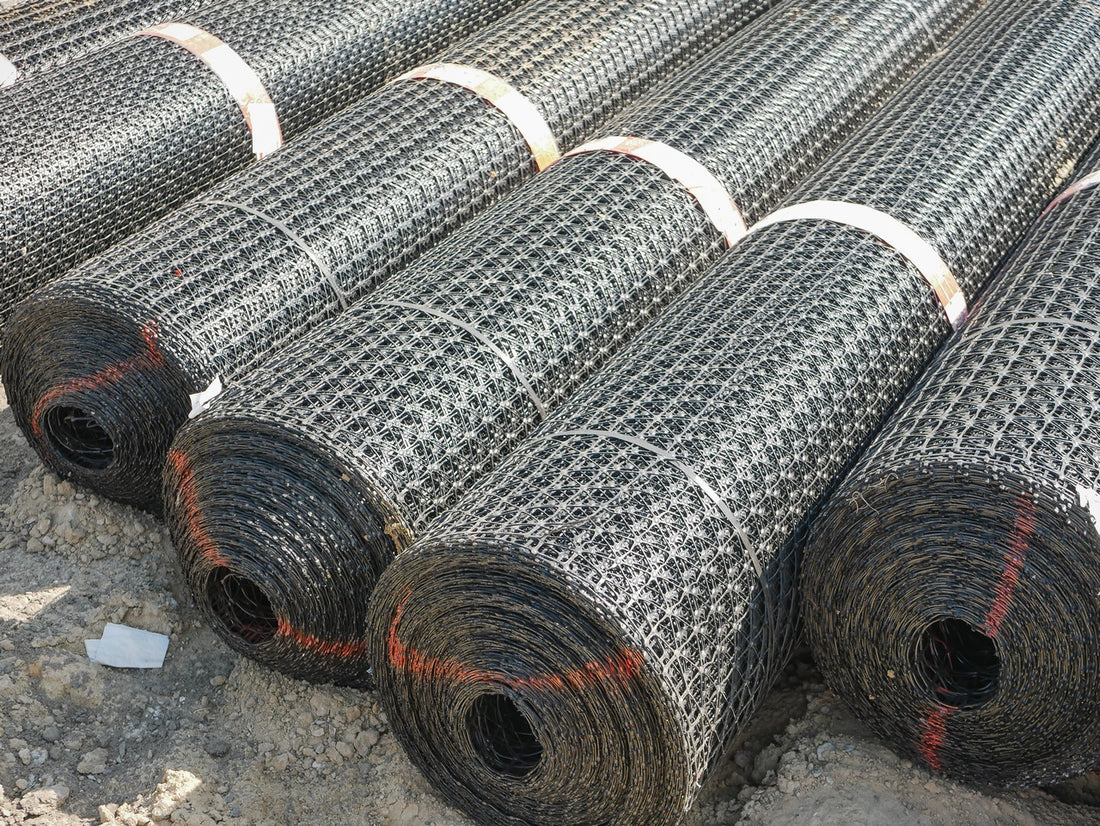

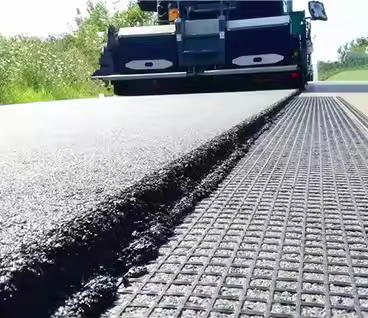

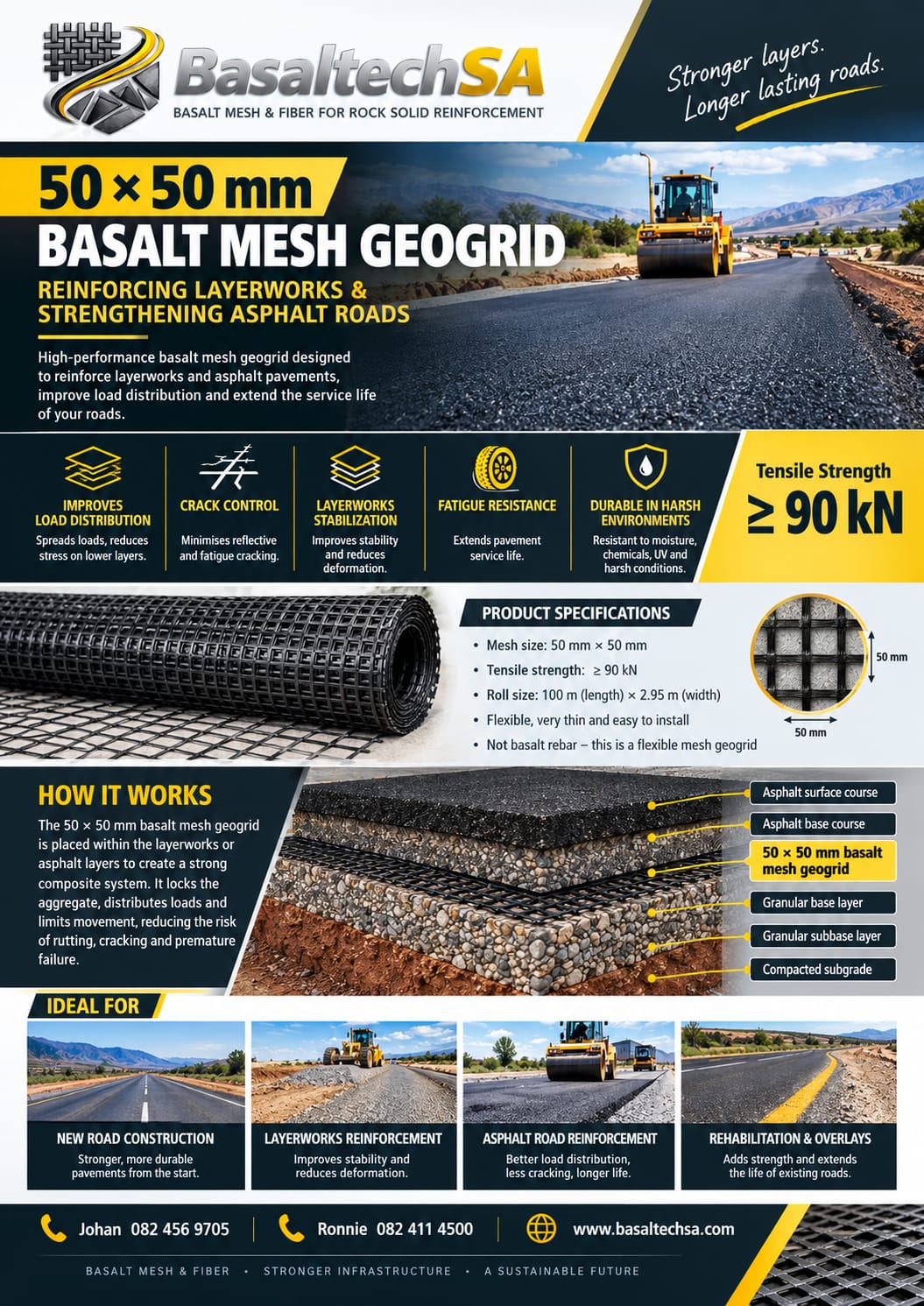

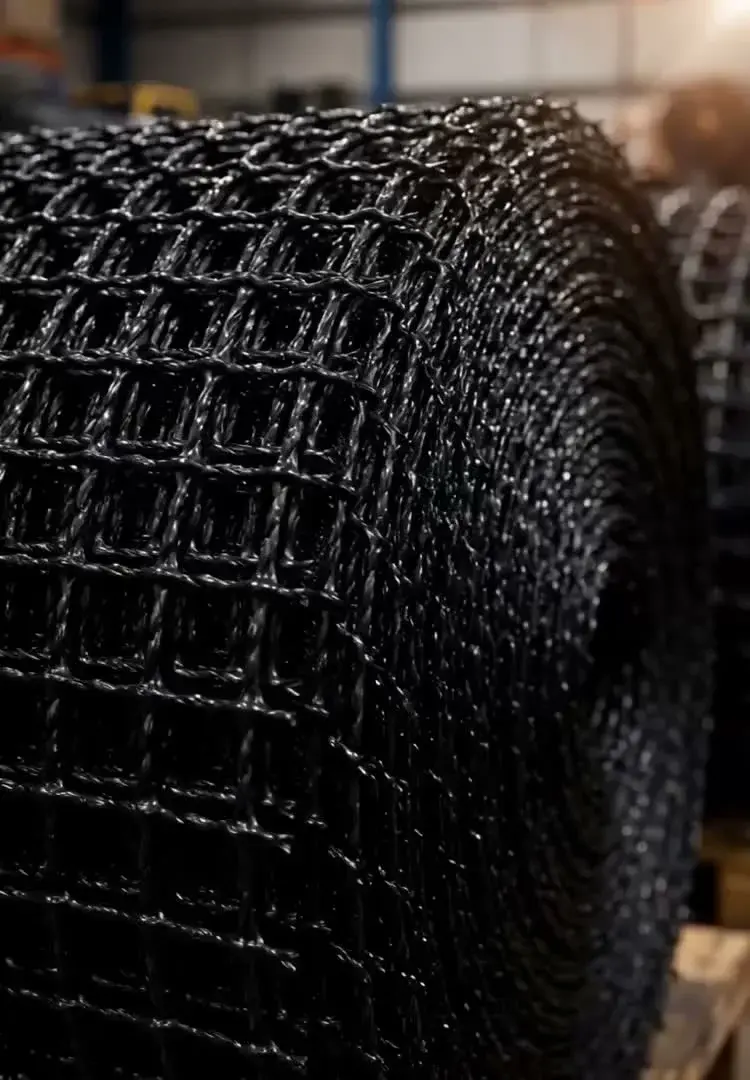

Basalt mesh geogrid50 × 50 mm
Flexible basalt mesh for asphalt reinforcement, road rehabilitation and pavement layerworks.
- Tensile rating
- ≥92 kN/m
- Roll dimensions
- 2.95 × 100 m
- Nominal roll area
- 295 m²
SOUTH AFRICA / CONSTRUCTION MATERIALS
BASALT MESH.
CHOPPED FIBRE.
REINFORCEMENT.
Basalt reinforcement for asphalt, concrete and layerworks. Product specifications and application guidance for engineers, contractors and concrete producers.
BASALT MESH & FIBRE SOLUTIONS
01 / MESH APERTURE50 × 50 mm
02 / ROLL DIMENSIONS2.95 × 100 m
03 / NOMINAL MESH ROLL AREA295 m²
04 / MESH TENSILE RATING≥92 kN/m
01 / PRODUCT RANGE
SELECT YOUR
REINFORCEMENT.
Continuous mesh for pavement layers. Chopped fibre for concrete and asphalt mixes. Start with the product data.
Compare products01 / BASALT REINFORCEMENT
02 / BASALT REINFORCEMENTConcrete, mortar & asphalt

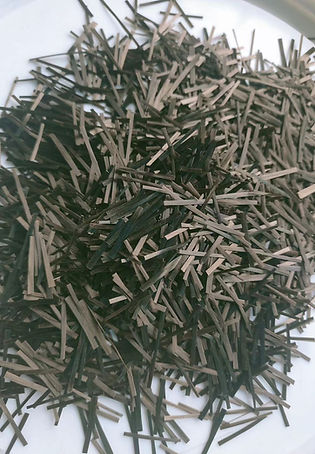

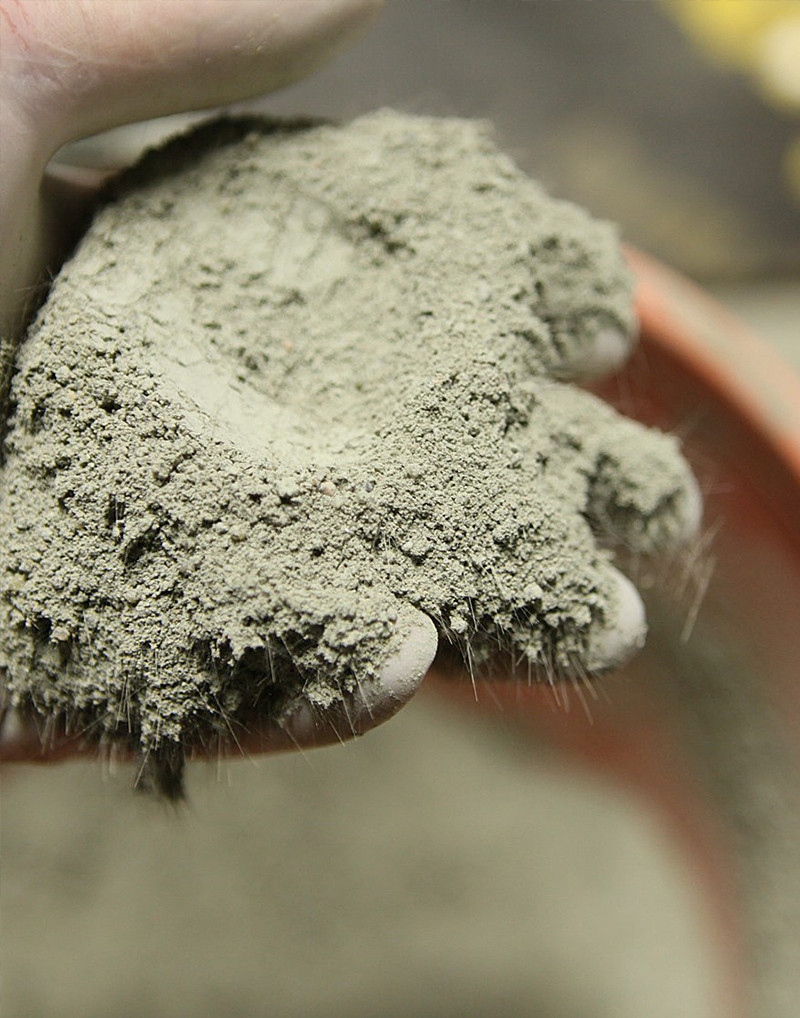

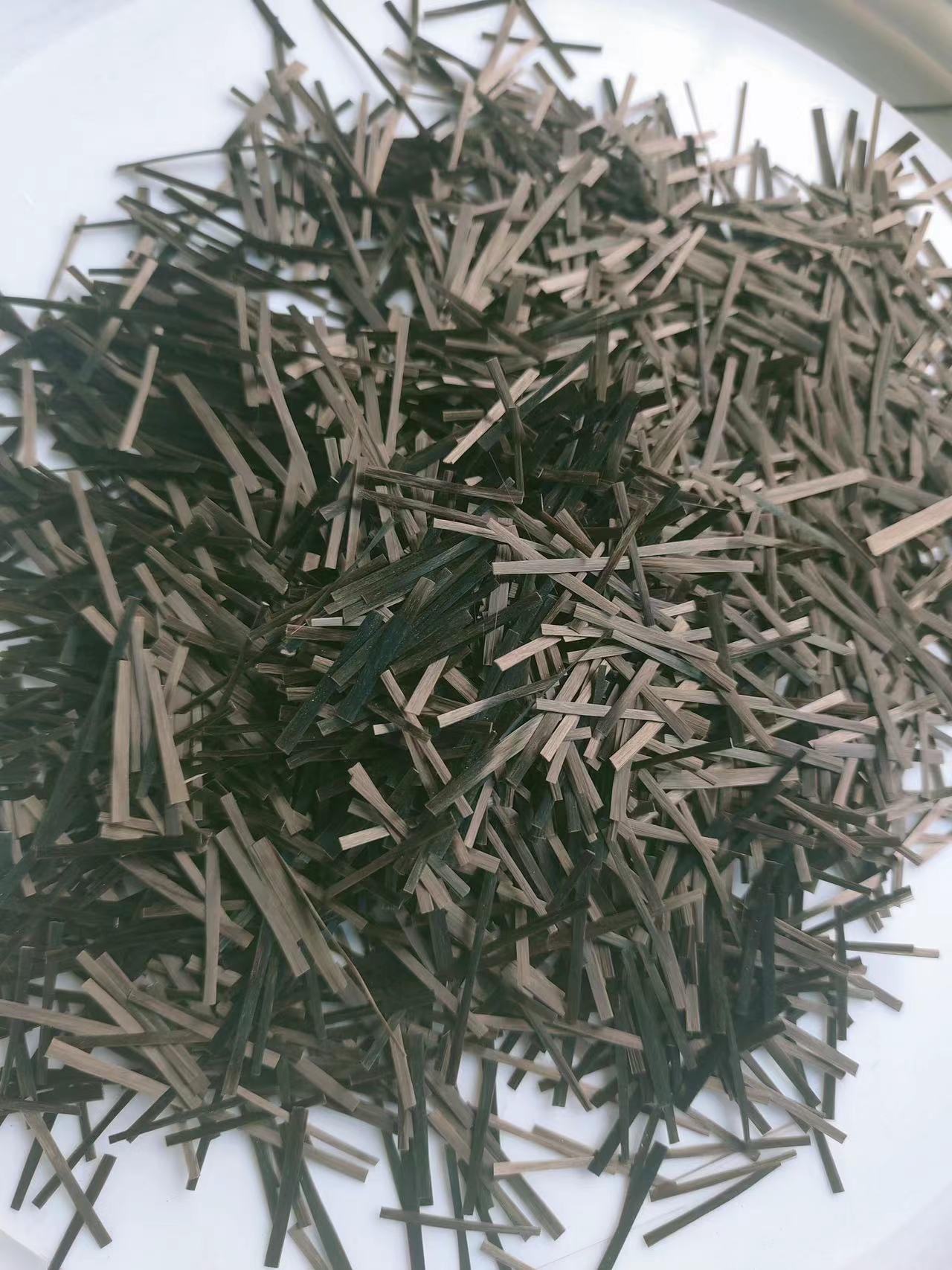

Chopped basalt fibre24 ± 1 mm

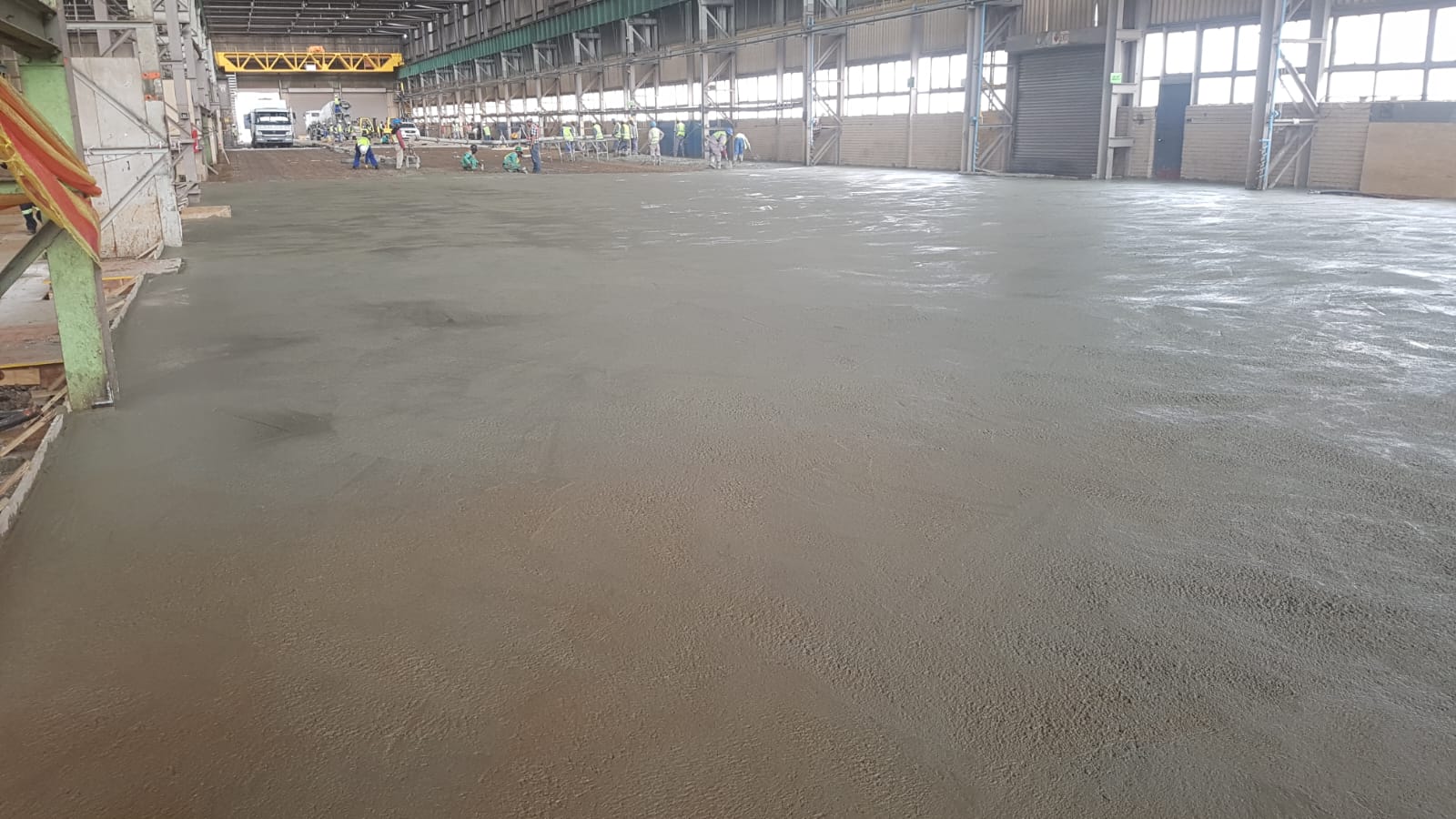

X-SBR coated chopped basalt strands for concrete, mortar and asphalt mixes, including floors, precast elements and pavements.
- Breaking strength spec.
- ≥1,000 MPa
- Fibre diameter
- 16 ± 1 µm
- Coating
- X-SBR
02 / ENGINEERING & APPLICATION
KNOW THE MATERIAL.
UNDERSTAND THE SECTION.
SECTION A–ASCHEMATIC / NTS
- Asphalt surface course
- Asphalt base course
- Basalt mesh geogrid 50 × 50 mm / ≥92 kN/m
- Granular base
- Compacted subgrade

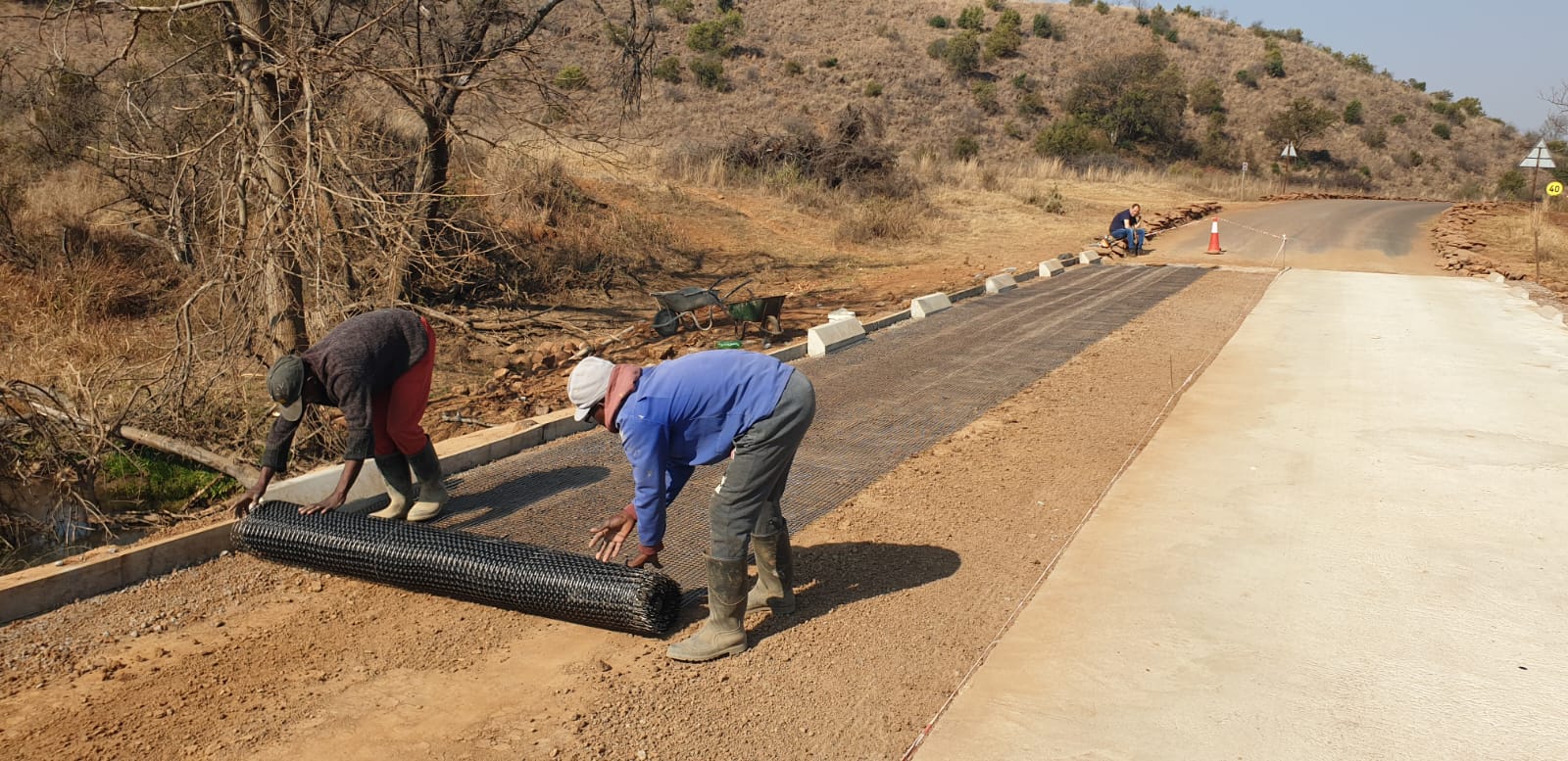

MESH GEOGRID / PAVEMENT SYSTEMSReinforcement at the
Reinforcement at the
designed interface.
The mesh works within the pavement structure. Its location, bond and installation are part of the design, alongside the asphalt mix, layer thicknesses and subgrade condition.
- Material form
- Flexible basalt fibre grid
- Nominal aperture
- 50 × 50 mm
- Published tensile rating
- ≥92 kN/m
- Design inputs
- Loading, bond, position & exposure
03 / TECHNICAL REFERENCE
THE NUMBERS.
WITH THE UNITS.
Mesh and chopped fibre specifications at a glance. Product ratings describe the reinforcement material, not the finished pavement or concrete.
| Parameter | Basalt mesh geogrid | Chopped basalt fibre |
|---|---|---|
| Geometry | 50 × 50 mm aperture | 24 ± 1 mm length / 16 ± 1 µm diameter |
| Tensile property | ≥92 kN/m per unit width | ≥1,000 MPa breaking strength specification |
| Supply / material data | 2.95 m × 100 m roll / 295 m² nominal | X-SBR coated chopped strands |
| Incorporation | Laid at the designed pavement interface | Dispersed through concrete or asphalt |
| Specification | Full mesh data ↗ | Full fibre data ↗ |
DATA BASIS
Mesh dimensions are from the supplied product information; the tensile rating is confirmed by BasaltechSA. Fibre figures are from the replacement flyer supplied on 1 October 2026. Request the underlying test reports before specification.

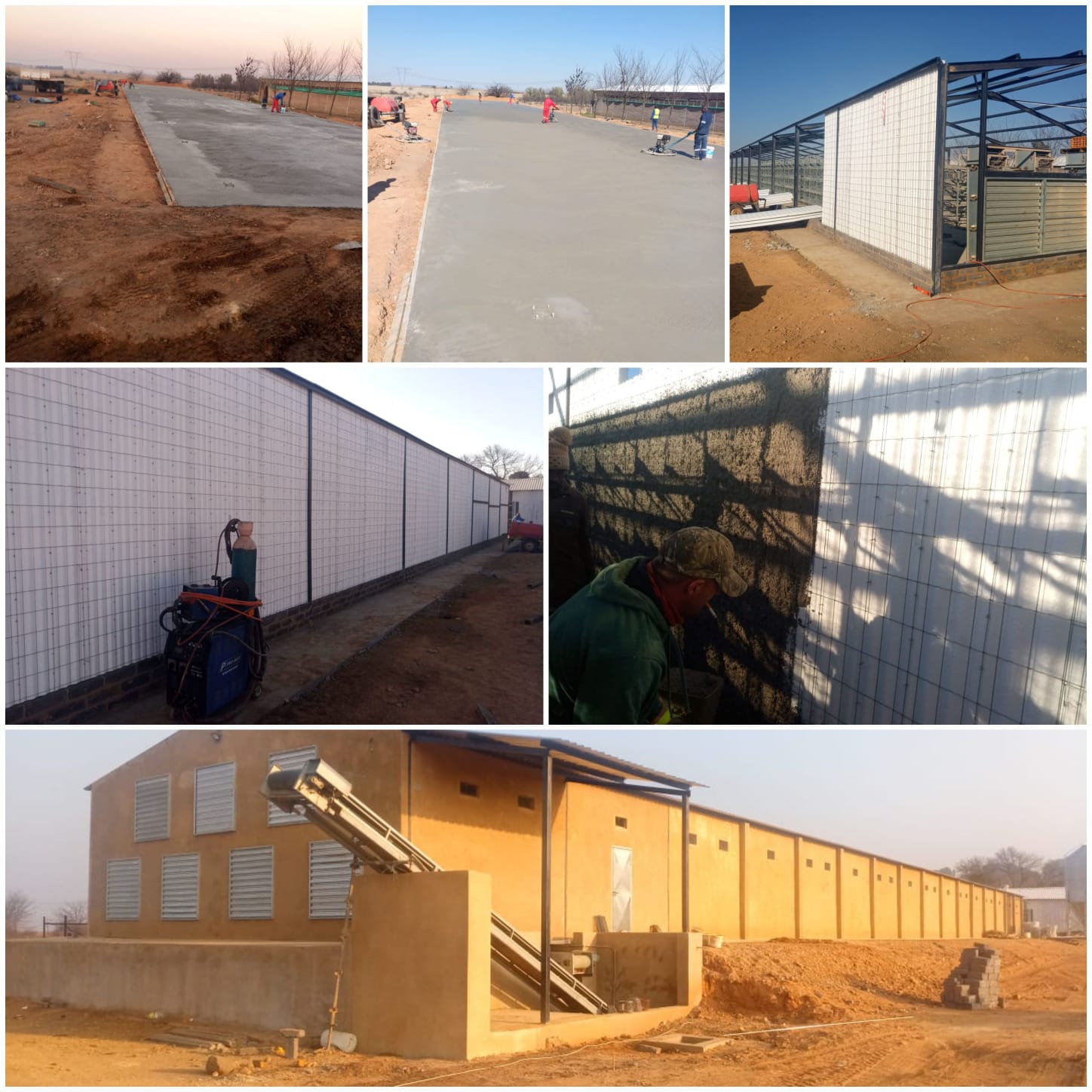

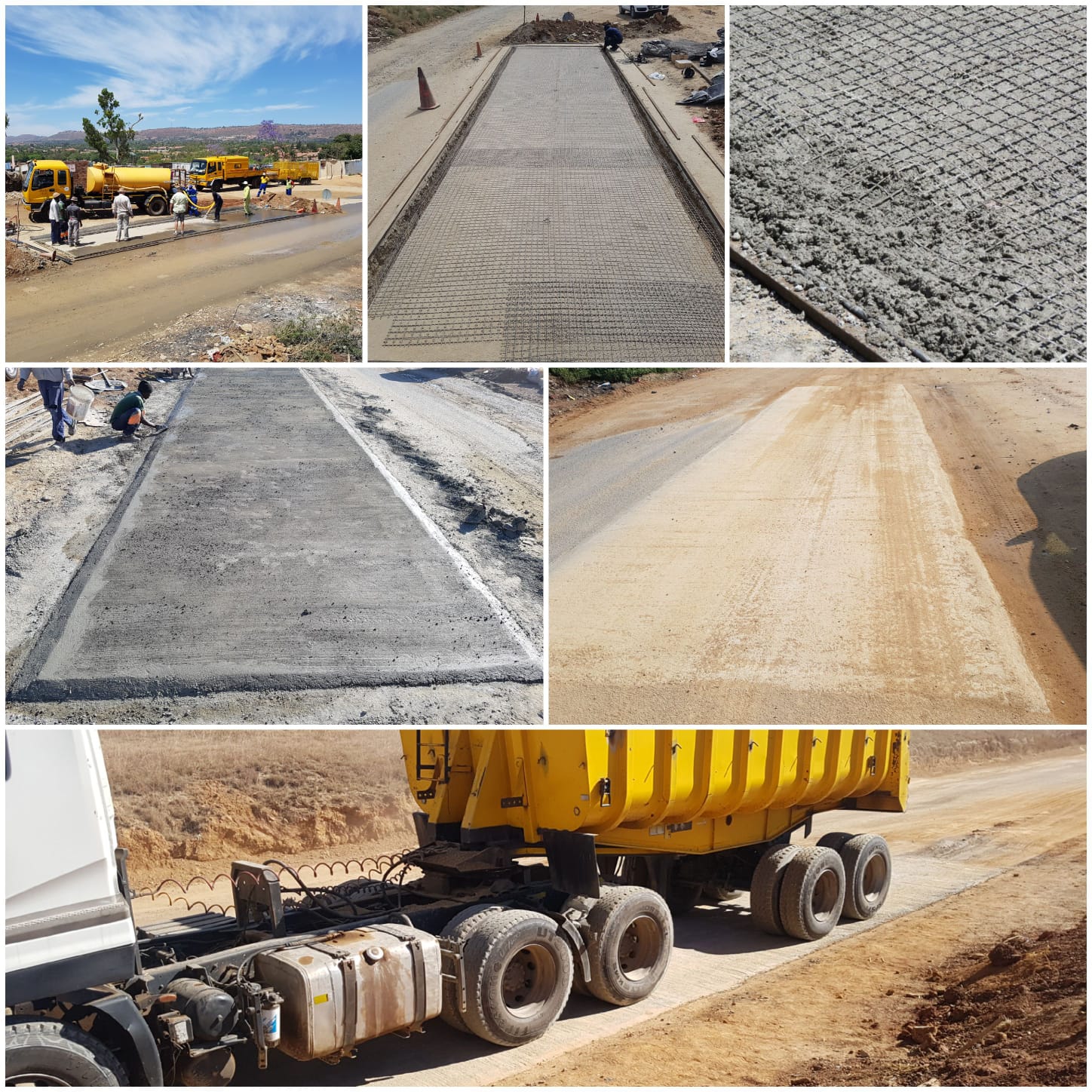

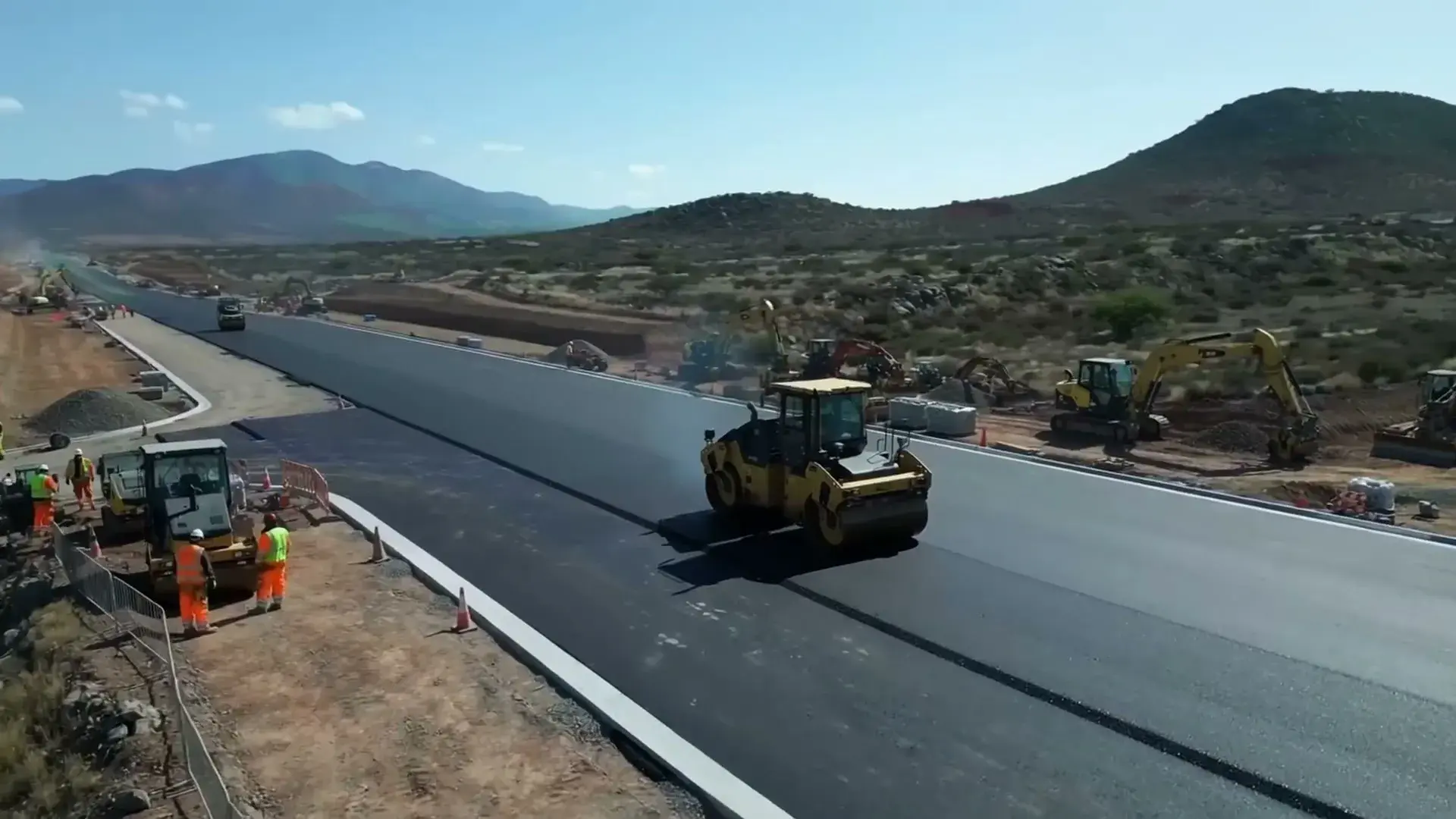

04 / APPLICATIONS
ON SITE.
IN THE MIX.
05 / SPECIFICATION DESK
WORKING ON
A SPECIFICATION?
Get the product dimensions, published material properties, mixing ranges and installation considerations in one place.
Open engineering referenceREINFORCEMENT GUIDES
COMPARE THE OPTIONS.
Practical answers for South African engineers, contractors and project owners, with sources and product-specific limits.
01 / MATERIAL SELECTION
Concrete reinforcement in South Africa
Steel mesh, reinforcing bars and concrete fibres. Understand their different roles before choosing a reinforcement system.
Read the guide02 / COST PLANNING
Comparing concrete reinforcement costs
A practical framework for comparing delivered materials, installation and mix costs on the same design basis.
Read the guideBASALTECHSA / SOUTH AFRICABASALT REINFORCEMENT.
BASALT REINFORCEMENT.
LOCAL PRODUCT SUPPORT.
Supplying projects from Gauteng and Limpopo, with a focus on basalt mesh geogrid and chopped basalt fibre.
About BasaltechSAPRODUCT SUPPORT
TECHNICAL
QUESTIONS.
What does BasaltechSA supply?
BasaltechSA supplies 50 × 50 mm basalt mesh geogrid and chopped basalt fibre for construction and infrastructure applications in South Africa.
Where is BasaltechSA based?
BasaltechSA operates from Gauteng and Limpopo, serving projects throughout South Africa. Contact the team to confirm availability, delivery arrangements and lead times for your location.
Which product is right for my project?
Mesh is installed as a continuous grid within a pavement system. Chopped fibre is added to a concrete or asphalt mix. The application, design and performance requirements determine which product is suitable.
How do I get specifications or a quotation?
Contact Johan or Ronnie with the application, project location, quantity and programme. Request the current product data, relevant test information and installation or mixing guidance for your project.
PROJECT SPECIFICATION & SUPPLY
PRODUCT DATA.
TECHNICAL SUPPORT.
Speak to our team about product selection, specifications and supply.
